5. Dual-Core Lockstep (DCLS)¶

This chapter describes the proposed Dual-Core Lockstep functionality and its future implementation in the VeeR EL2 Core, as required by Caliptra 2.0 for side-channel mitigation scenarios, although it may be useful for other applications like rad-hardening or other safety related-scenarios which DCLS is often also used for.

5.1. VeeR EL2 DCLS Overview¶

The lockstep feature will be added as an optional feature of VeeR EL2, disabled by default. If enabled, another copy of the VeeR EL2 CPU core will be additionally instantiated in the design. This second core will be referred to as a Shadow Core in this chapter.

The Shadow Core is delayed by a constant, configurable DELAY number of clock cycles with regards to the main core.

The DCCM and ICCM memories are not duplicated, and only the main VeeR EL2 CPU core has access to them. The Shadow Core is only supplied with the delayed inputs of the main core, including the relevant DCCM and ICCM data, without any ability to read from or write to those memories by itself.

Similarly, Icache is not duplicated with only the main VeeR EL2 CPU core having direct access. The Shadow Core will receive a delayed copy of main core’s Icache inputs. The copy of main core’s Icache outputs will be passed into the Equivalency Checker to be validated against the Shadow Core’s Icache outputs.

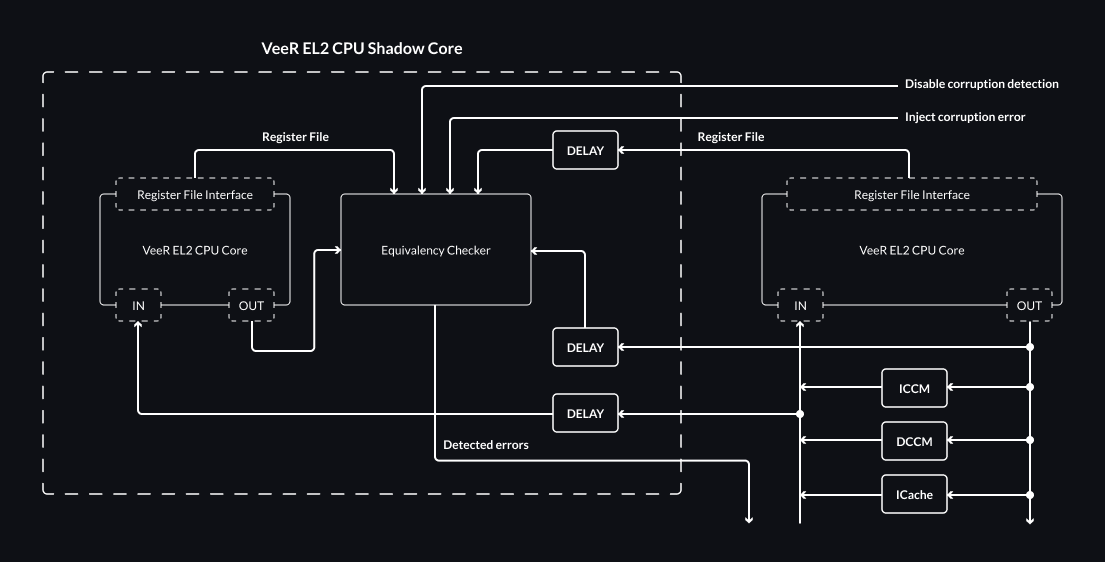

The diagram below outlines the architecture of the proposed solution.

VeeR DCLS Overview

Outputs and the register file from the main core are delayed by DELAY cycles and passed to the Equivalency Checker for verification against the outputs and the register file of the Shadow Core.

5.1.1. Error Policy¶

The Dual Core Lockstep module will report an error when detected by asserting a single bit output signal. It is up to the integrator to provide a logic to handle the detected error. The error can be artifficially injected by using Shadow Core Control capabilities. The corruption error will be reported always when all of the following requirements are met:

Input and Output signals of both Main Core and Shadow Core differ OR an error injection feature is enabled,
The Shadow Core is out of reset,
The Shadow Core is not disabled.

5.1.2. Monitored Registers¶

The Shadow Core can have its internal copy of the register file by setting a proper VeeR EL2 configuration flag. Even though every discrepancy between register files of the Main Core and Shadow Core will eventually lead to difference between IOs of these modules, it might take some time for the mismatch to manifest. To determine whether a discrepancy has occurred immediately, the register files from both cores will be compared taking into account a reasonable subset of the VeeR EL2 registers, as defined in the table below:

Table 5.1 Monitored VeeR EL2 Registers¶
Name	Description
x1 (ra)	Return address
x2 (sp)	Stack pointer
x8 (s0/fp)	Saved register / frame pointer
x10-x11 (a0-a1)	Function arguments / return values
x12-17 (a2-7)	Function arguments
pc	Program Counter
npc	Next Program Counter
mstatus	Machine status
mie	Machine interrupt enable
mtvec	Machine trap-handler base address
mscratch	Scratch register for machine trap handlers
mepc	Machine exception program counter
mcause	Machine trap cause
mtval	Machine bad address or instruction
mip	Machine interrupt pending
mcycle	Machine cycle counter
minstret	Machine instructions-retired counter
mrac	Region access control

Note

Should the monitored registers be dependent on the VeeR configuration?

5.1.3. Monitored IOs¶

Since the Shadow Core module must replicate the behavior of the Main Core without any differences, it contains the same input and output ports. Input ports are delayed and routed to the copy of the VeeR EL2 CPU, output ports are compared with the delayed output ports of the Main Core. Refer to Core Complex signals tracked by the Shadow Core for list of ports routed to the Shadow Core.

Table 5.2 Core Complex signals tracked by the Shadow Core¶
Signal	Dir	Description
Clock Enables
ifu_bus_clk_en	in	IFU master system bus clock enable
lsu_bus_clk_en	in	LSU master system bus clock enable
dbg_bus_clk_en	in	Debug master system bus clock enable
dma_bus_clk_en	in	DMA slave system bus clock enable
Reset
rst_vec[31:1]	in	Core reset vector
Interrupts
nmi_int	in	Non-Maskable Interrupt (async)
nmi_vec[31:1]	in	Non-Maskable Interrupt vector
soft_int	in	Standard RISC-V software interrupt (async)
timer_int	in	Standard RISC-V timer interrupt (async)
extintsrc_req[pt.PIC_TOTAL_INT:1]	in	External interrupts (async)
Core ID
core_id[31:4]	in	Core ID (mapped to `mhartid[31:4]`)
System Bus Interfaces
AXI4
Instruction Fetch Unit Master AXI4
Write address channel signals
ifu_axi_awvalid	out	Write address valid (hardwired to 0)
ifu_axi_awready	in	Write address ready
ifu_axi_awid[pt.IFU_BUS_TAG-1:0]	out	Write address ID
ifu_axi_awaddr[31:0]	out	Write address
ifu_axi_awlen[7:0]	out	Burst length
ifu_axi_awsize[2:0]	out	Burst size
ifu_axi_awburst[1:0]	out	Burst type
ifu_axi_awlock	out	Lock type
ifu_axi_awcache[3:0]	out	Memory type
ifu_axi_awprot[2:0]	out	Protection type
ifu_axi_awqos[3:0]	out	Quality of Service (QoS)
ifu_axi_awregion[3:0]	out	Region identifier
Write data channel signals
ifu_axi_wvalid	out	Write valid (hardwired to 0)
ifu_axi_wready	in	Write ready
ifu_axi_wdata[63:0]	out	Write data
ifu_axi_wstrb[7:0]	out	Write strobes
ifu_axi_wlast	out	Write last
Write response channel signals
ifu_axi_bvalid	in	Write response valid
ifu_axi_bready	out	Write response ready (hardwired to 0)
ifu_axi_bid[pt.IFU_BUS_TAG-1:0]	in	Response ID tag
ifu_axi_bresp[1:0]	in	Write response
Read address channel signals
ifu_axi_arvalid	out	Read address valid
ifu_axi_arready	in	Read address ready
ifu_axi_arid[pt.IFU_BUS_TAG-1:0]	out	Read address ID
ifu_axi_araddr[31:0]	out	Read address
ifu_axi_arlen[7:0]	out	Burst length (hardwired to 0b0000_0000)
ifu_axi_arsize[2:0]	out	Burst size (hardwired to 0b011)
ifu_axi_arburst[1:0]	out	Burst type (hardwired to 0b01)
ifu_axi_arlock	out	Lock type (hardwired to 0)
ifu_axi_arcache[3:0]	out	Memory type (hardwired to 0b1111)
ifu_axi_arprot[2:0]	out	Protection type (hardwired to 0b100)
ifu_axi_arqos[3:0]	out	Quality of Service (QoS) (hardwired to 0b0000)
ifu_axi_arregion[3:0]	out	Region identifier
Read data channel signals
ifu_axi_rvalid	in	Read valid
ifu_axi_rready	out	Read ready
ifu_axi_rid[pt.IFU_BUS_TAG-1:0]	in	Read ID tag
ifu_axi_rdata[63:0]	in	Read data
ifu_axi_rresp[1:0]	in	Read response
ifu_axi_rlast	in	Read last
Load/Store Unit Master AXI4
Write address channel signals
lsu_axi_awvalid	out	Write address valid
lsu_axi_awready	in	Write address ready
lsu_axi_awid[pt.LSU_BUS_TAG-1:0]	out	Write address ID
lsu_axi_awaddr[31:0]	out	Write address
lsu_axi_awlen[7:0]	out	Burst length (hardwired to 0b0000_0000)
lsu_axi_awsize[2:0]	out	Burst size
lsu_axi_awburst[1:0]	out	Burst type (hardwired to 0b01)
lsu_axi_awlock	out	Lock type (hardwired to 0)
lsu_axi_awcache[3:0]	out	Memory type
lsu_axi_awprot[2:0]	out	Protection type (hardwired to 0b000)
lsu_axi_awqos[3:0]	out	Quality of Service (QoS) (hardwired to 0b0000)
lsu_axi_awregion[3:0]	out	Region identifier
Write data channel signals
lsu_axi_wvalid	out	Write valid
lsu_axi_wready	in	Write ready
lsu_axi_wdata[63:0]	out	Write data
lsu_axi_wstrb[7:0]	out	Write strobes
lsu_axi_wlast	out	Write last
Write response channel signals
lsu_axi_bvalid	in	Write response valid
lsu_axi_bready	out	Write response ready
lsu_axi_bid[pt.LSU_BUS_TAG-1:0]	in	Response ID tag
lsu_axi_bresp[1:0]	in	Write response
Read address channel signals
lsu_axi_arvalid	out	Read address valid
lsu_axi_arready	in	Read address ready
lsu_axi_arid[pt.LSU_BUS_TAG-1:0]	out	Read address ID
lsu_axi_araddr[31:0]	out	Read address
lsu_axi_arlen[7:0]	out	Burst length (hardwired to 0b0000_0000)
lsu_axi_arsize[2:0]	out	Burst size
lsu_axi_arburst[1:0]	out	Burst type (hardwired to 0b01)
lsu_axi_arlock	out	Lock type (hardwired to 0)
lsu_axi_arcache[3:0]	out	Memory type
lsu_axi_arprot[2:0]	out	Protection type (hardwired to 0b000)
lsu_axi_arqos[3:0]	out	Quality of Service (QoS) (hardwired to 0b0000)
lsu_axi_arregion[3:0]	out	Region identifier
Read data channel signals
lsu_axi_rvalid	in	Read valid
lsu_axi_rready	out	Read ready
lsu_axi_rid[pt.LSU_BUS_TAG-1:0]	in	Read ID tag
lsu_axi_rdata[63:0]	in	Read data
lsu_axi_rresp[1:0]	in	Read response
lsu_axi_rlast	in	Read last
System Bus (Debug) Master AXI4
Write address channel signals
sb_axi_awvalid	out	Write address valid
sb_axi_awready	in	Write address ready
sb_axi_awid[pt.SB_BUS_TAG-1:0]	out	Write address ID (hardwired to 0)
sb_axi_awaddr[31:0]	out	Write address
sb_axi_awlen[7:0]	out	Burst length (hardwired to 0b0000_0000)
sb_axi_awsize[2:0]	out	Burst size
sb_axi_awburst[1:0]	out	Burst type (hardwired to 0b01)
sb_axi_awlock	out	Lock type (hardwired to 0)
sb_axi_awcache[3:0]	out	Memory type (hardwired to 0b1111)
sb_axi_awprot[2:0]	out	Protection type (hardwired to 0b000)
sb_axi_awqos[3:0]	out	Quality of Service (QoS) (hardwired to 0b0000)
sb_axi_awregion[3:0]	out	Region identifier
Write data channel signals
sb_axi_wvalid	out	Write valid
sb_axi_wready	in	Write ready
sb_axi_wdata[63:0]	out	Write data
sb_axi_wstrb[7:0]	out	Write strobes
sb_axi_wlast	out	Write last
Write response channel signals
sb_axi_bvalid	in	Write response valid
sb_axi_bready	out	Write response ready
sb_axi_bid[pt.SB_BUS_TAG-1:0]	in	Response ID tag
sb_axi_bresp[1:0]	in	Write response
Read address channel signals
sb_axi_arvalid	out	Read address valid
sb_axi_arready	in	Read address ready
sb_axi_arid[pt.SB_BUS_TAG-1:0]	out	Read address ID (hardwired to 0)
sb_axi_araddr[31:0]	out	Read address
sb_axi_arlen[7:0]	out	Burst length (hardwired to 0b0000_0000)
sb_axi_arsize[2:0]	out	Burst size
sb_axi_arburst[1:0]	out	Burst type (hardwired to 0b01)
sb_axi_arlock	out	Lock type (hardwired to 0)
sb_axi_arcache[3:0]	out	Memory type (hardwired to 0b0000)
sb_axi_arprot[2:0]	out	Protection type (hardwired to 0b000)
sb_axi_arqos[3:0]	out	Quality of Service (QoS) (hardwired to 0b0000)
sb_axi_arregion[3:0]	out	Region identifier
Read data channel signals
sb_axi_rvalid	in	Read valid
sb_axi_rready	out	Read ready
sb_axi_rid[pt.SB_BUS_TAG-1:0]	in	Read ID tag
sb_axi_rdata[63:0]	in	Read data
sb_axi_rresp[1:0]	in	Read response
sb_axi_rlast	in	Read last
DMA Slave AXI4
Write address channel signals
dma_axi_awvalid	in	Write address valid
dma_axi_awready	out	Write address ready
dma_axi_awid[pt.DMA_BUS_TAG-1:0]	in	Write address ID
dma_axi_awaddr[31:0]	in	Write address
dma_axi_awlen[7:0]	in	Burst length
dma_axi_awsize[2:0]	in	Burst size
dma_axi_awburst[1:0]	in	Burst type
dma_axi_awprot[2:0]	in	Protection type
Write data channel signals
dma_axi_wvalid	in	Write valid
dma_axi_wready	out	Write ready
dma_axi_wdata[63:0]	in	Write data
dma_axi_wstrb[7:0]	in	Write strobes
dma_axi_wlast	in	Write last
Write response channel signals
dma_axi_bvalid	out	Write response valid
dma_axi_bready	in	Write response ready
dma_axi_bid[pt.DMA_BUS_TAG-1:0]	out	Response ID tag
dma_axi_bresp[1:0]	out	Write response
Read address channel signals
dma_axi_arvalid	in	Read address valid
dma_axi_arready	out	Read address ready
dma_axi_arid[pt.DMA_BUS_TAG-1:0]	in	Read address ID
dma_axi_araddr[31:0]	in	Read address
dma_axi_arlen[7:0]	in	Burst length
dma_axi_arsize[2:0]	in	Burst size
dma_axi_arburst[1:0]	in	Burst type
dma_axi_arprot[2:0]	in	Protection type
Read data channel signals
dma_axi_rvalid	out	Read valid
dma_axi_rready	in	Read ready
dma_axi_rid[pt.DMA_BUS_TAG-1:0]	out	Read ID tag
dma_axi_rdata[63:0]	out	Read data
dma_axi_rresp[1:0]	out	Read response
dma_axi_rlast	out	Read last
AHB-Lite
Instruction Fetch Unit Master AHB-Lite
Master signals
haddr[31:0]	out	System address
hburst[2:0]	out	Burst type (hardwired to 0b000)
hmastlock	out	Locked transfer (hardwired to 0)
hprot[3:0]	out	Protection control
hsize[2:0]	out	Transfer size
htrans[1:0]	out	Transfer type
hwrite	out	Write transfer
Slave signals
hrdata[63:0]	in	Read data
hready	in	Transfer finished
hresp	in	Slave transfer response
Load/Store Unit Master AHB-Lite
Master signals
lsu_haddr[31:0]	out	System address
lsu_hburst[2:0]	out	Burst type (hardwired to 0b000)
lsu_hmastlock	out	Locked transfer (hardwired to 0)
lsu_hprot[3:0]	out	Protection control
lsu_hsize[2:0]	out	Transfer size
lsu_htrans[1:0]	out	Transfer type
lsu_hwdata[63:0]	out	Write data
lsu_hwrite	out	Write transfer
Slave signals
lsu_hrdata[63:0]	in	Read data
lsu_hready	in	Transfer finished
lsu_hresp	in	Slave transfer response
System Bus (Debug) Master AHB-Lite
Master signals
sb_haddr[31:0]	out	System address
sb_hburst[2:0]	out	Burst type (hardwired to 0b000)
sb_hmastlock	out	Locked transfer (hardwired to 0)
sb_hprot[3:0]	out	Protection control
sb_hsize[2:0]	out	Transfer size
sb_htrans[1:0]	out	Transfer type
sb_hwdata[63:0]	out	Write data
sb_hwrite	out	Write transfer
Slave signals
sb_hrdata[63:0]	in	Read data
sb_hready	in	Transfer finished
sb_hresp	in	Slave transfer response
DMA Slave AHB-Lite
Slave signals
dma_haddr[31:0]	in	System address
dma_hburst[2:0]	in	Burst type
dma_hmastlock	in	Locked transfer
dma_hprot[3:0]	in	Protection control
dma_hsize[2:0]	in	Transfer size
dma_htrans[1:0]	in	Transfer type
dma_hwdata[63:0]	in	Write data
dma_hwrite	in	Write transfer
dma_hsel	in	Slave select
dma_hreadyin	in	Transfer finished in
Master signals
dma_hrdata[63:0]	out	Read data
dma_hreadyout	out	Transfer finished
dma_hresp	out	Slave transfer response
Memory interfaces
Data Close-Coupled Memory
dccm_clk_override
dccm_ecc_double_error
dccm_ecc_single_error
dccm_rd_addr_hi
dccm_rd_addr_lo
dccm_rd_data_hi
dccm_rd_data_lo
dccm_rden
dccm_wr_addr_hi
dccm_wr_addr_lo
dccm_wr_data_hi
dccm_wr_data_lo
dccm_wren
dec_tlu_core_ecc_disable	out	Disable core ECC
Inctruction Close-Coupled Memory
iccm_buf_correct_ecc
iccm_correction_state
iccm_ecc_double_error
iccm_ecc_single_error
iccm_rd_data
iccm_rd_data_ecc
iccm_rden
iccm_rw_addr
iccm_wr_data
iccm_wr_size
iccm_wren
icm_clk_override
Instruction Cache Memory
ic_debug_addr
ic_debug_rd_data
ic_debug_rd_en
ic_debug_tag_array
ic_debug_way
ic_debug_wr_data
ic_debug_wr_en
ic_eccerr
ic_parerr
ic_premux_data
ic_rd_data
ic_rd_en
ic_rd_hit
ic_rw_addr
ic_sel_premux_data
ic_tag_perr
ic_tag_valid
ic_wr_data
ic_wr_en
ictag_debug_rd_data
Power Management Unit (PMU) Interface
i_cpu_halt_req	in	PMU halt request to core (async)
o_cpu_halt_ack	out	Core acknowledgement for PMU halt request
o_cpu_halt_status	out	Core halted indication
i_cpu_run_req	in	PMU run request to core (async)
o_cpu_run_ack	out	Core acknowledgement for PMU run request
Multi-Processor Controller (MPC) Debug Interface
mpc_debug_halt_req	in	MPC debug halt request to core (async)
mpc_debug_halt_ack	out	Core acknowledgement for MPC debug halt request
mpc_debug_run_req	in	MPC debug run request to core (async)
mpc_debug_run_ack	out	Core acknowledgement for MPC debug run request
mpc_reset_run_req	in	Core start state control out of reset
o_debug_mode_status	out	Core in Debug Mode indication
debug_brkpt_status	out	Hardware/software breakpoint indication
Performance Counter Activity
dec_tlu_perfcnt0	out	Performance counter 0 incrementing
dec_tlu_perfcnt1	out	Performance counter 1 incrementing
dec_tlu_perfcnt2	out	Performance counter 2 incrementing
dec_tlu_perfcnt3	out	Performance counter 3 incrementing
Trace Port
trace_rv_i_insn_ip[31:0]	out	Instruction opcode
trace_rv_i_address_ip[31:0]	out	Instruction address
trace_rv_i_valid_ip	out	Instruction trace valid
trace_rv_i_exception_ip	out	Exception
trace_rv_i_ecause_ip[4:0]	out	Exception cause
trace_rv_i_interrupt_ip	out	Interrupt exception
trace_rv_i_tval_ip[31:0]	out	Exception trap value
Debug Module Interface
dmi_reg_addr
dmi_reg_en
dmi_reg_rdata
dmi_reg_wdata
dmi_reg_wr_en
Debug JTAG Port
jtag_tck	in	JTAG Test Clock (async)
jtag_tms	in	JTAG Test Mode Select (async, sync to jtag_tck)
jtag_tdi	in	JTAG Test Data In (async, sync to jtag_tck)
jtag_trst_n	in	JTAG Test Reset (async)
jtag_tdo	out	JTAG Test Data Out (async, sync to jtag_tck)
jtag_id[31:1]	in	JTAG IDCODE register value (bit 0 tied internally to 1)
Testing
scan_mode	in	May be used to enable logic scan test, if implemented (must be ‘0’ for normal core operation)
mbist_mode	in	May be used to enable MBIST for core-internal memories, if implemented (should be tied to ‘0’ if not used)

Signals not compared due to their special meaning:

clk - core complex clock,
free_l2clk - core complex clock always enabled, routed through one clock header,
active_l2clk - core complex clock enabled when the core is active, routed through one clock header,
rst_l - core complex reset,
dbg_rst_l - debug module reset.

5.2. Shadow Core Control¶

The DCLS module exposes control logic that can be potentially connected to the external CSR. Specific signals available as the module ports are described in the Shadow Core Control Signals. The error injection logic is a part of the Shadow Core and its purpose is to test whether the lockstep module operates correctly and to disable it if needed. Error is injected by asserting the corruption_detected_o output signal even if there is no corruption error detected between the Shadow Core and the Main Core.

Table 5.3 Shadow Core Control Signals¶
Signal	Direction	Width	Description
disable_corruption_detection_i	input	1	Disable all error injection features
lockstep_err_injection_en_i	input	1	Activate an error injection to the Shadow Core
corruption_detected_o	output	1	Indicate that a Shadow Core detected an error (corruption in comparison to the Main Core)

5.3. Configuration¶

Warning

The DCLS feature is not supported in Debug Mode. Entering Debug Mode with DCLS enabled will disable DCLS until the next reset.

The DCLS feature can be enabled via -set lockstep_enable=1 option. There are two configuration options:

-set lockstep_delay={2, 3, 4} - the delay applied on the Shadow Core between 2 and 4 cycles,
-set lockstep_regfile_enable=1 - enable exposing the VeeR Register File so the Shadow Core will have an internal copy to compare with the Main Core Register File.

The configuration options are ignored and their macros are not generated if the Dual Core Lockstep feature is disabled.

5.4. Validation Plan¶

The DCLS feature will be tested within:

Software DCLS smoke test - covers VeeR CPU core with the Shadow Core execution flow.
RTL el2_veer_lockstep module tests - covers the Shadow Core by itself.

Table 5.4 Validation Plan¶
Function	VeeR EL2 CPU core input corruption detection
Reference Document
Check description	Verify the panic signal is raised only upon core states’ mismatch. Introduce corruption via VeeR EL2 CPU core inputs directed to the Shadow Core.
Coverage groups	Each output of the VeeR EL2 CPU Core is reached when detecting the mismatch by `Equivalence Checker`. All bounds of configurable delay are reached.
Assertions	Detection bit is asserted upon encountered corruption. Error behavior follows the error handling policy. No action is taken if no corruption was introduced.
Comments
Test Name

Function	VeeR EL2 CPU core output corruption detection
Reference Document
Check description	Verify the panic signal is raised only upon core states’ mismatch. Introduce corruption via the outputs of the main VeeR CPU core directed to `Equivalence Checker` in the Shadow Core.
Coverage groups	Each output of the VeeR EL2 CPU Core is reached when detecting the mismatch by `Equivalence Checker`. All bounds of configurable delay are reached.
Assertions	Detection bit is asserted upon encountered corruption. Error behavior follows the relevant error handling policy. No action is taken if no corruption was introduced.
Comments
Test Name

Function	Internal state corruption detection
Reference Document
Check description	Verify the panic signal is raised only upon core states’ mismatch. Introduce corruption via exposed registers of the Shadow Core.
Coverage groups	Each monitored register is detected by the `Equivalence Checker`. All bounds of configurable delay are reached.
Assertions	Detection bit is asserted upon encountered corruption. Error behavior follows the relevant error handling policy. No action is taken if no corruption was introduced.
Comments	The default path will likely be more easily testable with the help of the software testbench. It should be possible to simulate a fault injection via mailbox see: top_tb.sv.
Test Name

Function	DCLS default execution
Reference Document
Check description	Verify the DCLS feature behavior during non-obstructed execution.
Coverage groups
Assertions	Detection bit is not raised. Detection interrupt is not asserted. The test provides the same results as the VeeR EL2 CPU core without the DCLS feature enabled.
Comments	It might be beneficial to use a software test with a program that will produce a result that can by easily compared to an alternative flow and also engage the VeeR EL2 core. Consider matrix multiplication.
Test Name

Function	Error reporting
Reference Document
Check description	Verify error reporting policy upon detected corruption.
Coverage groups	Each error policy is covered.
Assertions
Comments
Test Name

Function	Reset
Reference Document
Check description	Verify the behavior in reset. Ensure normal execution upon leaving reset.
Coverage groups
Assertions	Shadow Core enters reset at the same time the main VeeR core does. Shadow Core exits reset after a predefined delay following the main core. Detected corruption and interrupts are deasserted upon entering the reset.
Comments
Test Name

Last update: 2025-04-18
